WT-D0557-04
4 Way Power Divider
Technical Data Sheet
|
S/N
|
Item
|
Parameters
|
|
|
1
|
Way
|
4
|
|
|
2
|
Frequency Range |
10 ~ 40GHz |
|
|
3
|
Insertion Loss |
≤1.5dB (Does not contain theory loss 6.0dB) |
|
|
4
|
VSWR
|
Input: ≤1.5:1 ; Output: ≤1.5:1 |
|
|
5
|
Isolation
|
≥16dB
|
|
|
6
|
Amplitude Balance |
≤ ±0.4dB |
|
|
7
|
Phase Balance |
≤ ±6° |
|
|
8
|
Impedance
|
50 Ohms |
|
|
9
|
Power
|
Forward: 10W Max. ; Reverse: 1.0W Max |
|
|
10
|
Connectors
|
2.92mm(K)-Female
|
|
|
11
|
Surface Finish |
Painted Black |
|
|
12
|
Temperature Range |
-40℃ ~ +80℃ |
|
|
13
|
Material
|
Housing: 6061 Aluminum alloy Connectors: Stainless Steel |
Other screw: Stainless Steel |
|
14
|
Dimensions
|
52.3*38.1*10mm
|
|
|
15
|
Net weight |
0.065 KG |
|

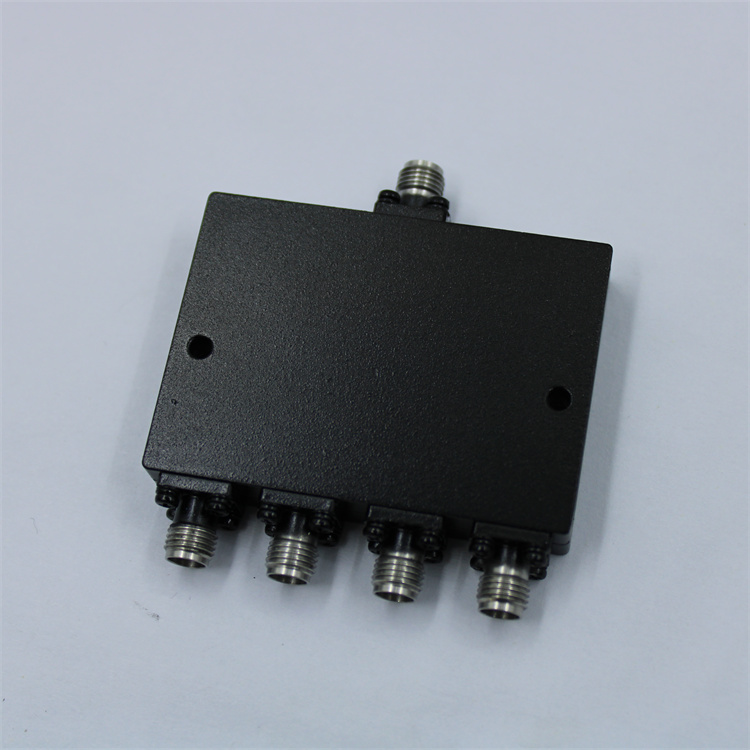

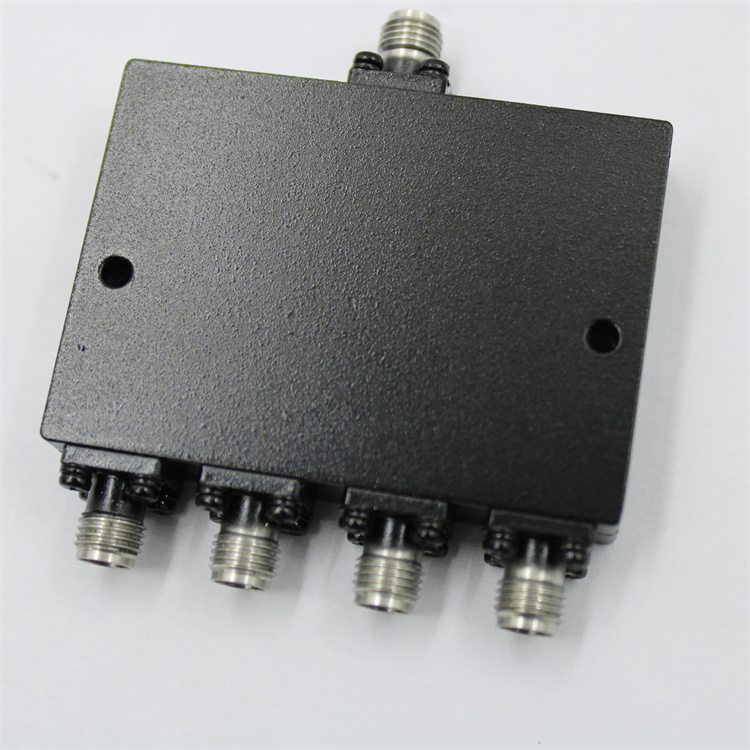

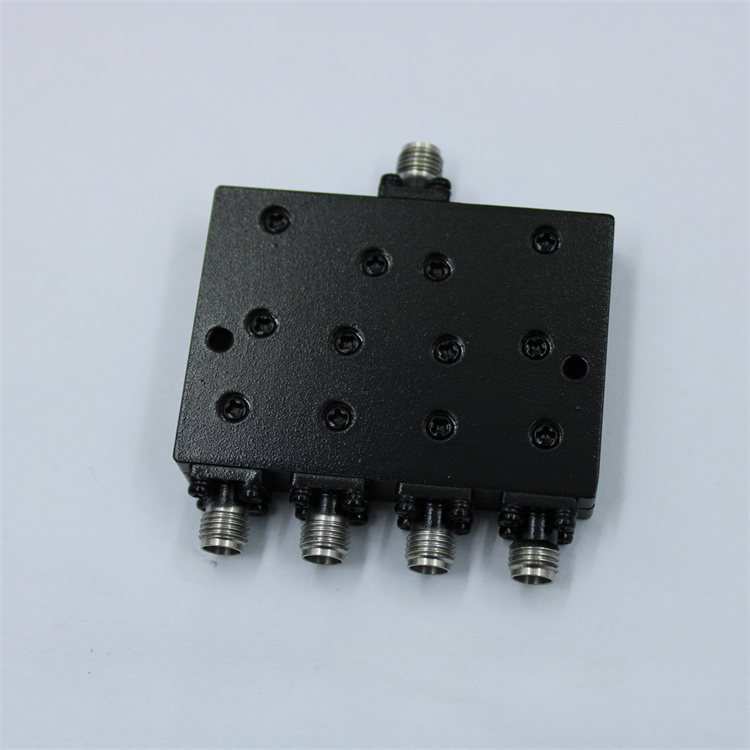

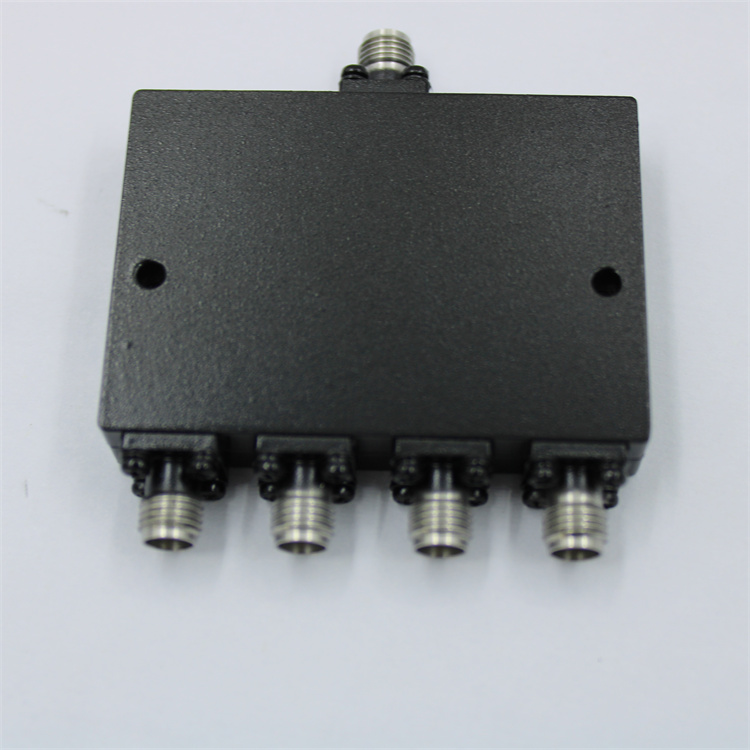

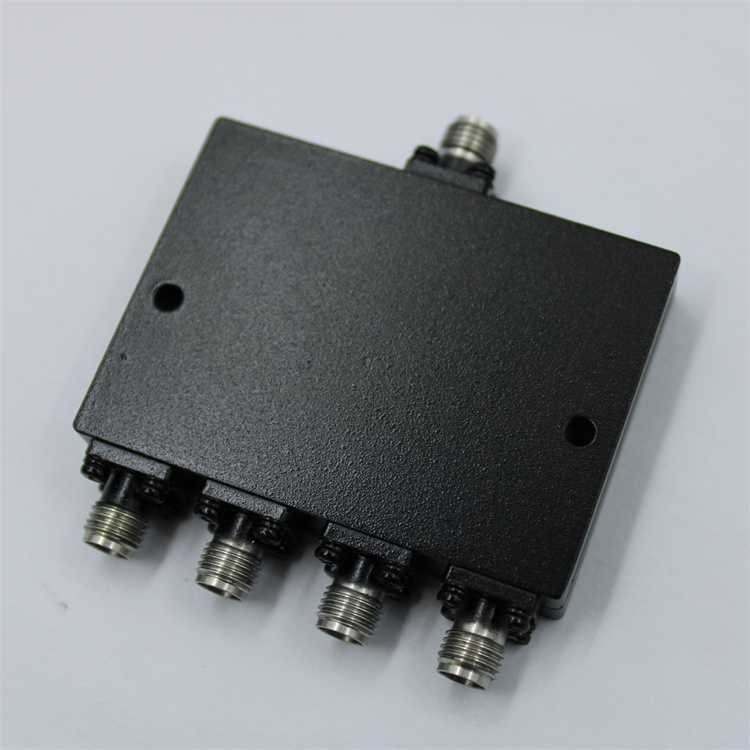

二.產(chǎn)品細(xì)節(jié)圖
